ILT detectors are designed to emit low levels of current in the
pico-amp to milli-amp range which is then converted to calibrated
optical units such as lux, W, W/cm2, etc., when used with ILT light
meters. Detector assemblies typically include a sensor, filter, optic
and calibration.
Example of a calibrated detector assembly for lux: "SED033/Y/W"
includes the “SED033” 33mm² silicon photodiode detector, the “Y”
photopic correction filter with the “W” Diffuser and calibration.
(Note: “/U” indicates an uncalibrated sensor).

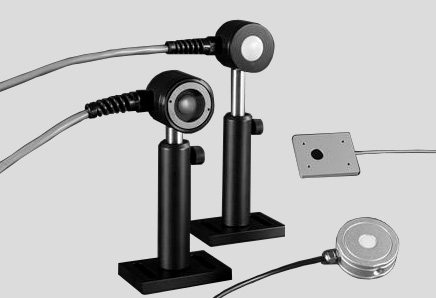

The SED and SPM type optical detector housings are made of black anodized aluminum, with female filter threads (1¼-24), a tripod mount (¼-20), and two end mounts (#8-32). Only these housings allow for filter selection/swapping and underwater modification. All underwater modified detectors (SUD) require the W wide-eye diffuser in addition to any other filters and come special order in 10, 50 or 100 foot lengths.
